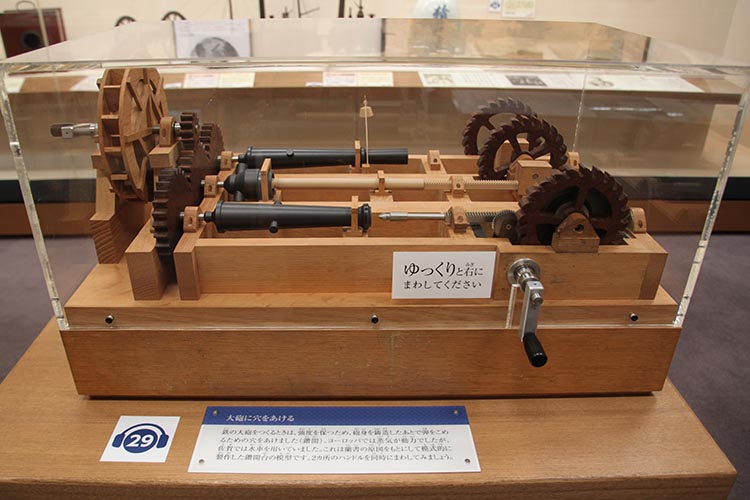

29Model of boring machine of cannons

This model shows how the barrel of the cannon was bored. The barrel of the cannon cast with the reverberatory furnace is at first solid. This is because for cast-iron cannons, the bore was made after the barrel was cast in order to maintain barrel strength. Europe used steam, but Saga used the waterwheel. This is the model of a machine set up to bore barrels, created in frame format based on original drawings in Dutch documents. Turn the two handles simultaneously, and you will get a good picture of the mechanism for boring barrels.
